CARTOUCHE 20 POLYRAY 0,1 MICRON

Product Description

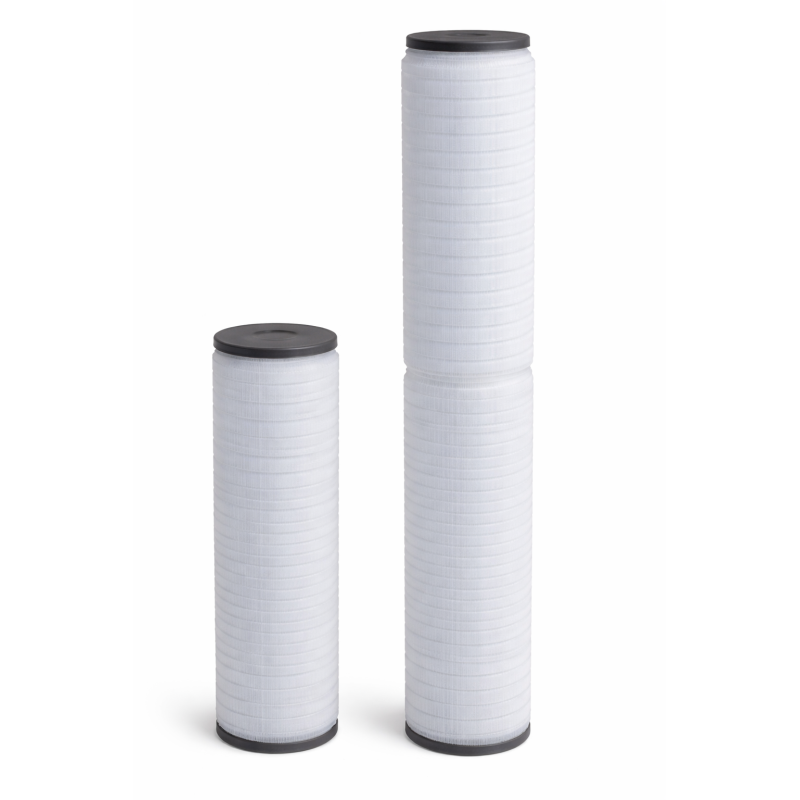

The cartridge AQUAPRO Polyray (Reference PR-POLYRAY-20-001) is an ultra-thin grade filtration solution, designed for the most demanding applications requiring absolute purity. Thanks to its 20-inch (50.8 cm) format, it offers a filtration surface lined with the standard 10 ", for processing larger flows while maintaining an accuracy of 0.1 micron.

This filter uses a pleated polypropylene media with graduated density. This technology allows selective capture: the outer layers act as an integrated pre-filtration to protect the core of 0.1 μm against premature clogging. It is the ultimate barrier to eliminate micro-particles, colloids, and drastically reduce bacterial and microbial load.

Key benefits

Absolute filtration (0.1 μm): maximum retention level for invisible particles to the naked eye, cysts and microorganisms.

High Capacity (20 "format): Ideal for industrial or domestic facilities with high flow. Offers extended autonomy and reduces the frequency of maintenance.

XXL Filtration Surface: The pleating of the medium maximizes the contact surface, ensuring minimal pressure drop (pressure drop) despite the extreme finesse of the filter.

Purity and safety: 100% polypropylene concrete thermosoude without any binding, adhesive or silicone. No fiber release in the network.

Outstanding Resistance: Supports process temperatures up to 80 ° C and has excellent chemical compatibility (acids, bases, solvents).

Maintenance & Recommendations

Replacement: To be replaced as soon as a significant pressure drop is observed or depending on the requirements of your quality process.

Pre-filtration essential: because of its extreme finesse, it is imperative to install an upstream filtration chain (for example: 20μm -> 5μm -> 1μm) to protect this cartridge and optimize its cost of use.

Type applications:

Final filtration of ultra-pure laboratory water or electronics industry.

Final protection before UV systems to ensure total disinfection.

Final clarification of sensitive drinks (spirits, mineral waters).

Filtration of critical fluids in chemical and cosmetic industry.
