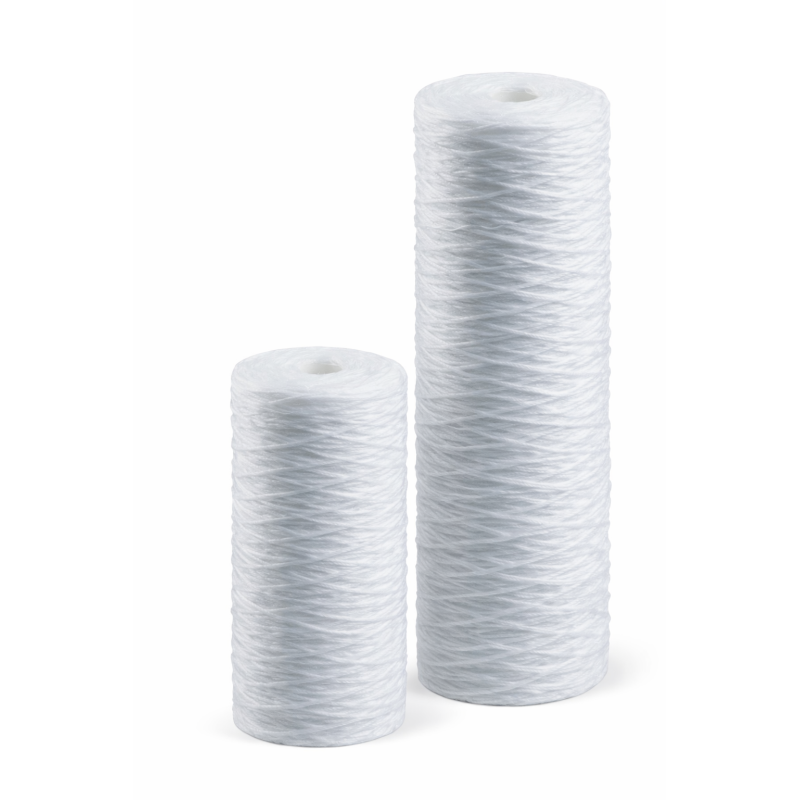

CARTOUCHE 20 BIG BLUE BOBINEE, 50 MICRONS

The cartridge AQUAPRO (Reference PR-SWS-2045-50) is the reference sediment filter for high-capacity pre-filtration in Big Blue 20 inch format housings. Combining a wide diameter (4.5 ") and a length of 50.8 cm, it offers a massive filtration surface, designed to handle very large water flows while maintaining a minimum pressure drop.

With a 50 micron filtration finesse, it provides an extremely efficient primary "sieving" feature. It is calibrated to stop the ruggermost sediments such as sand, rust particles, thick silt and channeling debris. Its pure polypropylene wire structure spilled around a rigid central core guarantees excellent mechanical stability, even under intense hydraulic streams encountered in the industrial or agricultural sector.

Key benefits

Big Blue (20 "x 4.5" format): specially designed for demanding facilities (large residences, agriculture, industries, communities) requiring a constant high flow rate.

Maximum Flow (50 μm): Provides minimal resistance to water, ideal for main water arrivals, watering systems or gross water treatment units.

100% polypropylene media: high purity material, certified for food contact, chemically inert and guaranteed without any fiber release.

Depth Filtration: The progressive winding process captures impurities throughout the thickness of the media, providing a sediment storage capacity much higher than conventional screen filters.

Network Protection: Indispensable to protect pumps, industrial softeners and finer filtration cartridges (5 or 1 micron) against premature fouling.

Maintenance & Recommendations

Replacement: It is recommended to replace the cartridge every 6 months. Visible accumulation of sediment or pressure drop on the manometers indicates that a change is needed.

Recommended use: To be installed systematically in first position (installation head) for the treatment of drilling water, wells or rainwater recovery.

Assembly Tip: For optimal water clarity, focus this 50 microns cartridge with a series of 10 or 5 micron cartridges in a second Big Blue housing.
